JRP Edge Digital Oil Pressure Gauge Kit 150 PSI 52mm

$79.50 $89.50
  • Product Code: Edge-52mm-Oil-Pressure
  • Availability: Pre-Order Aug 22nd - Contact Us
File Size
JRP-Edge-52mm-Boost-OilWater-Temp-Oil-Press-Manual-2021.pdf 1.49MB Manuals

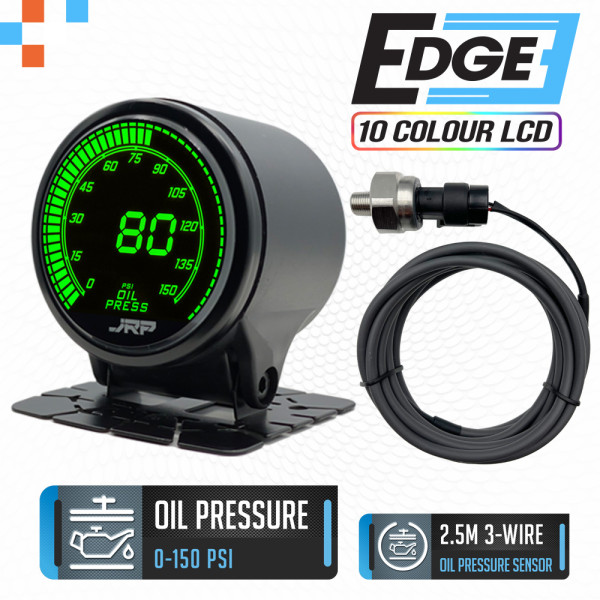

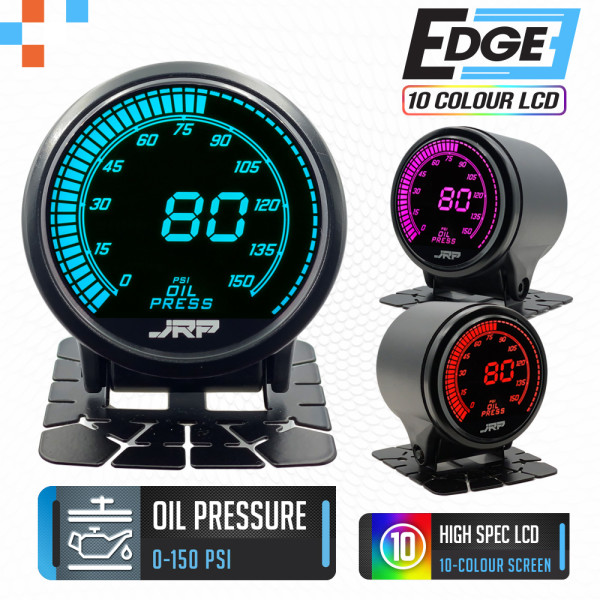

The JRP Edge 52mm digital oil pressure gauge kit is a terrific little package for keeping a close eye on your engines oil pressures, be it for petrol or diesel, these gauges will actively keep watch over your engine and if pressures get to low they will alert you with the built in warning. The gauges have a readout range of 0 to 150psi, they have a digital numeric readout in the centre of the gauges, and a handy scale type readout the surrounds the outside of the gauge for two ways to view the reading. The gauges come with a high quality 3-wire 0-5v oil pressure sensor which are more accurate than older style VDO type pressure sensors. If you are looking for a quality aftermarket gauge to keep an eye on your engines oil pressures, then the Edge 52mm digital oil pressure gauges are a great option. The gauges can of course have warnings set, the LCD screens have a selection of 10-colours to choose from, come with a gauge pod for mounting or also a pillar pod installation kit.

Keeping an eye on your car engines oil pressure is of particular interest for those with performance cars that are used on the track, while keeping watch on water temps and oil temps are also important, what oil pressure can help you know is when exactly your oil has reached a temperature when it’s starting to thin out and looses it’s ability to lubricate your bearings sufficiently. There can be a fine line between when oil is working like oil and when oil pretty much turns to water and you run the risk of engine damage, while oil temps are a good first indicator, it’s really when oil pressure starts to drop that you need to pay attention. Every brand of oil can be different, some may thin out at 120c, but others might be able to push to 135c without loosing their viscosity. So again this is why having an oil pressure gauge and keeping an eye on things can be very handy, as along with oil temp you can work out which is the best oil for your vehicle and keep a close eye on things.

Below you can find a ton of information on our JRP Edge 52mm digital oil pressure gauges, a main features breakdown, what is included in the box and for those that really like to know the product they are buying we have a decent detailed features breakdown section where we go over in detail some of the main points that make the JRP Edge range of gauges such an amazing little package. If after reading the below you have any questions, feel free to give the team here a call, email or shoot us a message on Facebook and we will be only too happy to help.

JRP Edge 52mm Digital Oil Pressure Gauge Features Breakdown Below

Oil Pressure Readout 0-150 PSI
Numeric & Scale Type Readout Displays
Configurable Warning
Peak Value Recoding
10-Colour Selectable LCD
3 Selectable opening & Closing Ceremonies
3 Outer Scale Display Type Selections
Day & Night Brightness Settings

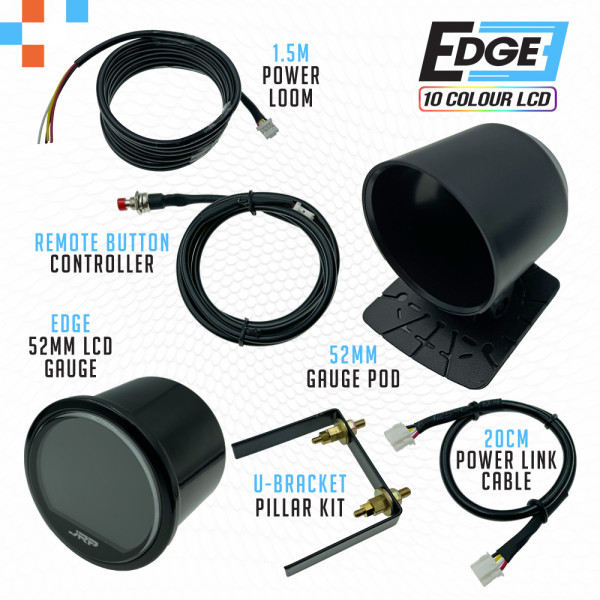

What's included with the JRP Edge 52mm oil pressure gauge is below

52mm Edge Digital Oil Pressure Gauge
2.5M 3-Wire 1/8 NPT Oil Pressure Sensor
52mm Gauge Pod
U-Bracket Pillar Mounting Kit
1.5M Power Cable
1M Remote Button Controller
20cm Power Link Cable

The JRP Edge 52mm gauge ranges logo



High quality sensors suppliedHIGH QUALITY SENSORS

These digital engine oil pressure gauges come with a high quality 3-wire 150 PSI pressure sensor, this design sends the signal back to the gauges over a 0-5v signal line, these types of sensors have been found to be more reliable than the older VDO style pressure sensors, they are accurate & fast responding along with being extremely reliable. Our pressure sensors have been out in the market now for years, they have a robust design that have been installed on thousands of vehicles over the years with very few ever needing to be replaced. If you are about to purchase this gauge, take a look to see if your vehicle can run an oil filter sandwich plate, as this can really simplify the install process for not only pressure sensors, but also oil temp sensors at the same time. They can be found in our auto gauge / accessories section on the site.

We have been in the gauge & wideband business now since 2016 and in that time we have been devoted to offering accurate and reliable gauge products for the performance car market, and also the diesel on-road and off-road customer base. We here at JRP know that customers when buying a gauge are looking not only for a product that looks nice, but they need to be able to rely on the sensors being accurate & reliable. Our mission has always been to supply amazing looking products, but with a strong focus on function and quality sensors without asking customers to pay a fortune. The Edge range of gauges is no different, you can rely on them being tough & accurate with peace of mind you won’t be having to replace sensors or the gauges due to poor quality, buy once buy right.



High spec lcd panelsAMAZING LCD DISPLAYS

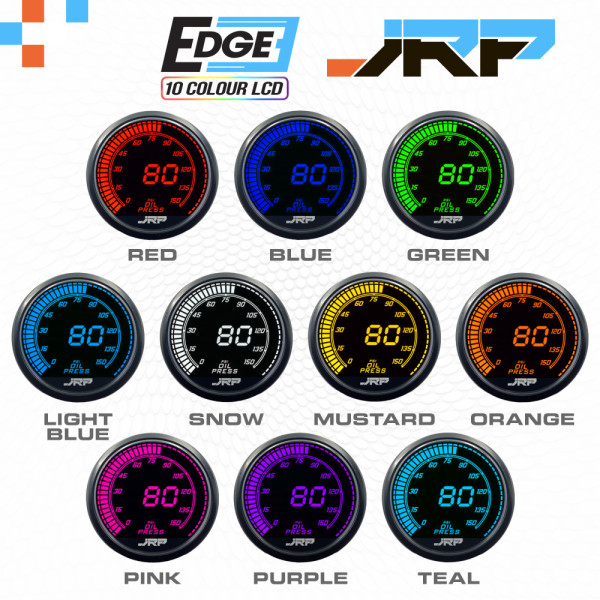

The crown jewel of the Edge 52mm range of gauges is their amazing VA type LCD panels that were developed just for these gauges. As soon as you see them light up you will know right away these are not your typical LCD gauge, they have an amazing clarity & brightness to them. They also have an amazing selection of different colours to choose from, each really standing out in it’s own right. The gauges also support day / night colour selection, so you can run a different colour at night by simply turning on your headlights.

The LCD panels used in the JRP Edge range of gauges took over a year in development process, they are a high end VA type panel which allows for superior viewing angles and brightness, the first thing you will notice about the JRP Edge gauges is how they can be viewed quite clearly on both on & off angle viewing, one of the shortfalls of LCD is as you view them off angle their brightness and clarity reduce, the JRP Edge have some of the best off angle viewing of any LCD gauge on the market today.

They have a brightness of 600nit which is also terrific, daytime viewing on some LCD gauges can be a little poor due to lack of brightness, this is not the case with the Edge range of gauges, and they are clear and easy to read in almost any condition. Also having such a large number of selectable display colours means it will be much easier to match factory instrument clusters for those customers who want to maintain a consistent look in their cabin.



Info on the JRP Edge 52mm gauges modern designHigh End Build Quality

The Edge range of gauges have a robust design, the body of the gauges are a tough light weight alloy finished in a polished black look which gives them a nice contemporary look which will suit almost any application. These gauges also use a thick single piece scratch proof tempered glass panel in front of the LCD screen which slightly protrudes from the gauge itself for an awesome look that just screams quality. There is nothing worse than gauges that just look cheap, and the last thing the Edge range does is look cheap, they have a modern look which is also supported by quality housing and glass which just gives them that overall feel and look of quality.



Install requires only one single power link cableSINGLE POWER INSTALL

The Edge range of gauges have a robust design, the body of the gauges are a tough light weight alloy finished in a polished black look which gives them a nice contemporary look which will suit almost any application. These gauges also use a thick single piece scratch proof tempered glass panel in front of the LCD screen which slightly protrudes from the gauge itself for an awesome look that just screams quality. There is nothing worse than gauges that just look cheap, and the last thing the Edge range does is look cheap, they have a modern look which is also supported by quality housing and glass which just gives them that overall feel and look of quality.


Gauges can be controlled with supplied external remote buttonREMOTE CONTROL

While the gauges themselves have a single button on the gauge body itself which is used for making changes to the gauges settings, such as colour selection, warning values, viewing or clearing peak values, each Edge 52mm oil pressure gauge comes with an external cabled button controller which can be installed somewhere tucked away in the cabin for making changes to the gauges settings after installation without having to remove the gauge from its housing to make the changes. Just simply connect our little button controller to the gauge and install somewhere easy to access, be it hidden away, or you can install it into your dash for the race look. Updating the gauges warning settings, changing colours, viewing or resetting peak values will no longer be a hassle at all.



Gauges can have warnings set, and peak value recordingWARNINGS & PEAK VALUES

All the Edge range of 52mm gauges have the feature to set warnings on the gauges, it’s an important part of any decent gauge solution for users to be able to configure their own warning values, and the Edge 52mm digital oil pressure gauges have this covered. The gauges have a built in buzzer that will alert you if your pressure drops below the psi value you set for a warning has been triggered, and a nice little warning symbol on the gauges screen. The gauges have another feature where they record peak values seen while driving, so you can also check the highest level of pressure the gauge has seen during a drive if you should wish to know this information. Couple this gauge with engine oil temp and you have a great combo to keep an eye on what your engines oil is up to.
